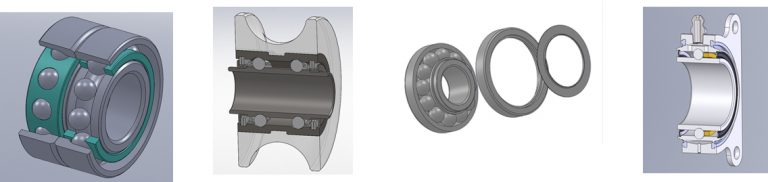

Schatz design and manufactures custom versions of any of our standard products. We can also supply you with custom bearings if you’re starting from scratch and have a brand-new concept.
Find out how we can design and manufacture custom ball bearings for your specific application, or keep reading to learn more about Schatz’s design and manufacturing capabilities.
You’ll also find information about applications, and products by industry and type.
Schatz designs custom bearings and can prototype, analyze for performance, and provide full production allotment – even for small lots. We’ll test your custom products extensively using industry-leading analytical tools. Our world class-design team analyzes bearing performance using key metrics, including load and speed requirements, along with environmental factors that affect performance.
Plus, our Application Engineers can work with you to modify standard bearing characteristics based on your specific requirements. This includes considerations such as materials of construction, surface treatments, size and number of rolling elements, ring sections, clearance/preload, cage and seal design, anti-rotation devices, and lubrication holes.
Schatz maintains a state-of-the-art manufacturing facility in Poughkeepsie, New York (USA). We have the following quality certifications.
Schatz manufactures small lots of custom products and offers the following manufacturing capabilities to our customers.
Schatz can design and manufacturer custom products for any application, including challenging operating environments with heavy loads or shock loads, torque sensitive mechanisms, requirements for high precision and accuracy, and contaminated or corrosive environments. Our custom bearings can also incorporate features such as special internal components.
Schatz designs and manufacturers the following types of custom aerospace bearings.
Schatz also designs and manufacturers custom bearings for military and defense-related applications. The advantages of working with us include:
Custom medical bearings can be used in pumps, centrifuges, respirators, ventilators, X-ray, scanning, robotic surgical equipment and other applications.
The custom semiconductor bearings that Schatz designs and manufactures are used in wafer processing, photolithography, robotics, polishers, dryers and other chip manufacturing applications. They include custom thin section bearings with a high degree of precision.
Custom versions of standard precision bearings can have ABEC 1, 3, 5, or 7 tolerances. They are available for light, extra light, and extremely light duty with medium, metric, or inch-based precision.
Custom thin section bearings are designed for use in tight spaces and hard-to-reach places. They appear thinner than standard ball bearings because their cross-section doesn’t become larger as bore diameter increases.
Custom versions of Schatz’s angular contact bearings are designed to support both radial and axial loads. They work by axially displacing the inner and outer ring raceways relative to each other, which causes the balls to contact the raceways at an angle.
These custom products are single row radial bearings with precision levels less than ABEC 1. Typically, unground bearings have tolerances 10 times greater than those of precision-ground bearings.
Custom products can be produced with 3D printing (additive manufacturing) instead of traditional bearing manufacturing processes. Additive manufactured bearings are available in a choice of materials and are often used in difficult applications. Single-piece assemblies with mating components help to reduce complexity.
For over 40 years, Schatz has supported unique bearing designs for challenging applications. Today, we provide the best solutions to the world’s most demanding industries. For consistent, reliable performance, count on our precision bearings.
