STD series bearings are thin section bearings with ABEC 1F, 3F, 5F, or 7F precision tolerances. A, C, or X type products. Virtual CAD files available.

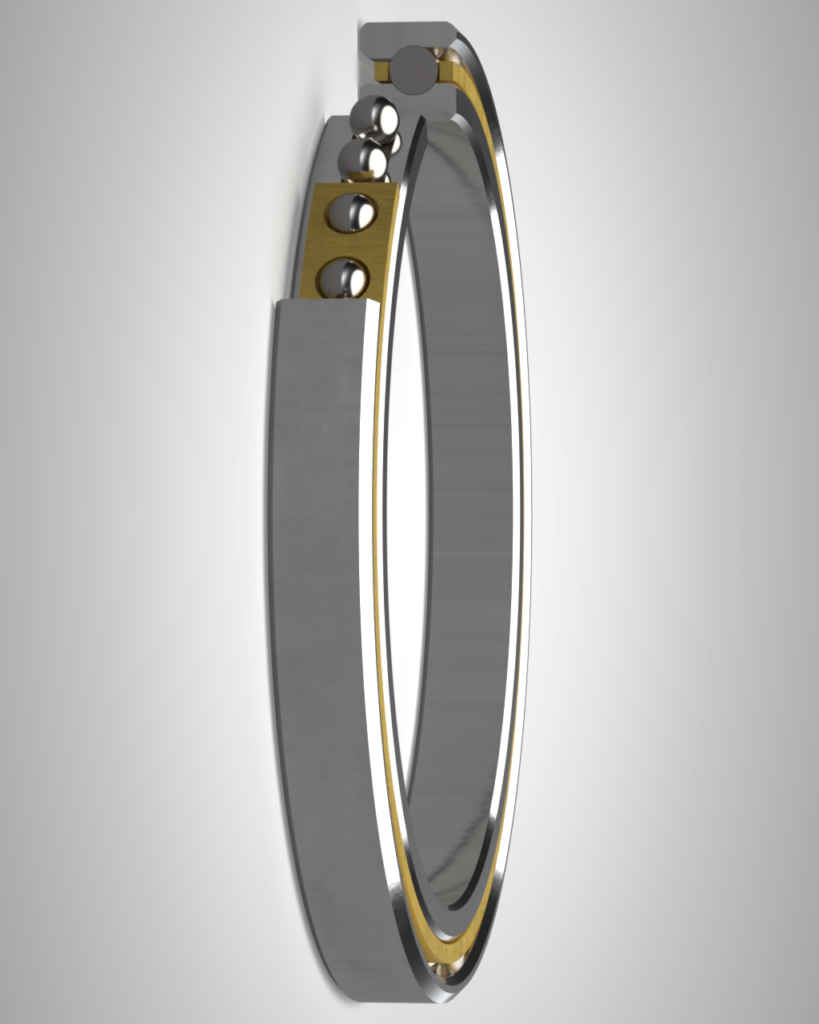

| wdt_ID | Part Number | Bore<br>(in.) | Outside Diameter<br>(in.) | Land Diameter<br>L1 (in.) | Land Diameter<br>L2 (in.) | C Bore Diameter<br>L3 (in.) | Radial Capacity Dynamic<br>(lbs) | Thrust Capacity Dynamic<br>(lbs) |
|---|---|---|---|---|---|---|---|---|
| 5 | STD040A | 4.0000 | 5.0000 | 4.370 | 4.630 | 4.741 | 1320 | 3,850 |
| 6 | STD042A | 4.2500 | 5.2500 | 4.620 | 4.880 | 4.991 | 1380 | 4,050 |
| 7 | STD045A | 4.5000 | 5.5000 | 4.870 | 5.130 | 5.241 | 1430 | 4,275 |
| 8 | STD047A | 4.7500 | 5.7500 | 5.120 | 5.380 | 5.490 | 1455 | 4,450 |
| 9 | STD050A | 5.0000 | 6.0000 | 5.370 | 5.630 | 5.740 | 1515 | 4,575 |
| 10 | STD055A | 5.5000 | 6.5000 | 5.870 | 6.130 | 6.238 | 1610 | 4,850 |
| 11 | STD060A | 6.0000 | 7.0000 | 6.370 | 6.630 | 6.738 | 1700 | 5,050 |
| 12 | STD065A | 6.5000 | 7.5000 | 6.870 | 7.130 | 7.236 | 1800 | 5,425 |
| 13 | STD070A | 7.0000 | 8.0000 | 7.370 | 7.630 | 7.736 | 1860 | 5,690 |
| 14 | STD075A | 7.5000 | 8.5000 | 7.870 | 8.130 | 8.236 | 1985 | 5,990 |
| 15 | STD080A | 8.0000 | 9.0000 | 8.370 | 8.630 | 8.734 | 2020 | 6,225 |
| 16 | STD090A | 9.0000 | 10.0000 | 9.370 | 9.630 | 9.732 | 2210 | 6,690 |
| 17 | STD100A | 10.0000 | 11.0000 | 10.370 | 10.630 | 10.732 | 2350 | 7,050 |
| 18 | STD110A | 11.0000 | 12.0000 | 11.370 | 11.630 | 11.730 | 2510 | 7,550 |
| 19 | STD120A | 12.0000 | 13.0000 | 12.370 | 12.630 | 12.728 | 2640 | 8,050 |
| Part Number | Bore<br>(in.) | Outside Diameter<br>(in.) | Land Diameter<br>L1 (in.) | Land Diameter<br>L2 (in.) | C Bore Diameter<br>L3 (in.) | Radial Capacity Dynamic<br>(lbs) | Thrust Capacity Dynamic<br>(lbs) |

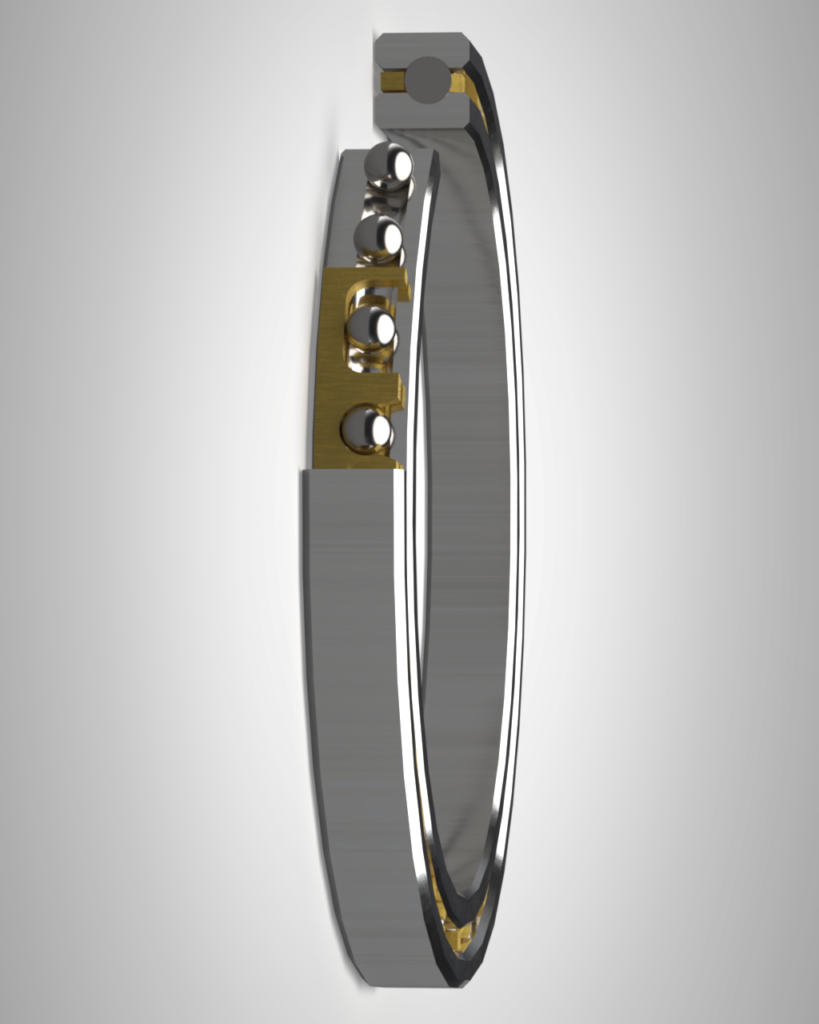

| wdt_ID | Part Number | Bore<br>(in.) | Outside Diameter<br>(in.) | Land Diameter<br>L1 (in.) | Land Diameter<br>L2 (in.) | Radial Capacity Dynamic<br>(lbs) |
|---|---|---|---|---|---|---|
| 5 | STD040C | 4.0000 | 5.0000 | 4.370 | 4.630 | 1320 |
| 6 | STD042C | 4.2500 | 5.2500 | 4.620 | 4.880 | 1380 |
| 7 | STD045C | 4.5000 | 5.5000 | 4.870 | 5.130 | 1430 |
| 8 | STD047C | 4.7500 | 5.7500 | 5.120 | 5.380 | 1455 |
| 9 | STD050C | 5.0000 | 6.0000 | 5.370 | 5.630 | 1515 |
| 10 | STD055C | 5.5000 | 6.5000 | 5.870 | 6.130 | 1610 |
| 11 | STD060C | 6.0000 | 7.0000 | 6.370 | 6.630 | 1700 |
| 12 | STD065C | 6.5000 | 7.5000 | 6.870 | 7.130 | 1800 |
| 13 | STD070C | 7.0000 | 8.0000 | 7.370 | 7.630 | 1860 |
| 14 | STD075C | 7.5000 | 8.5000 | 7.870 | 8.130 | 1985 |
| 15 | STD080C | 8.0000 | 9.0000 | 8.370 | 8.630 | 2020 |
| 16 | STD090C | 9.0000 | 10.0000 | 9.370 | 9.630 | 2210 |
| 17 | STD100C | 10.0000 | 11.0000 | 10.370 | 10.630 | 2350 |
| 18 | STD110C | 11.0000 | 12.0000 | 11.370 | 11.630 | 2510 |
| 19 | STD120C | 12.0000 | 13.0000 | 12.370 | 12.630 | 2640 |
| Part Number | Bore<br>(in.) | Outside Diameter<br>(in.) | Land Diameter<br>L1 (in.) | Land Diameter<br>L2 (in.) | Radial Capacity Dynamic<br>(lbs) |

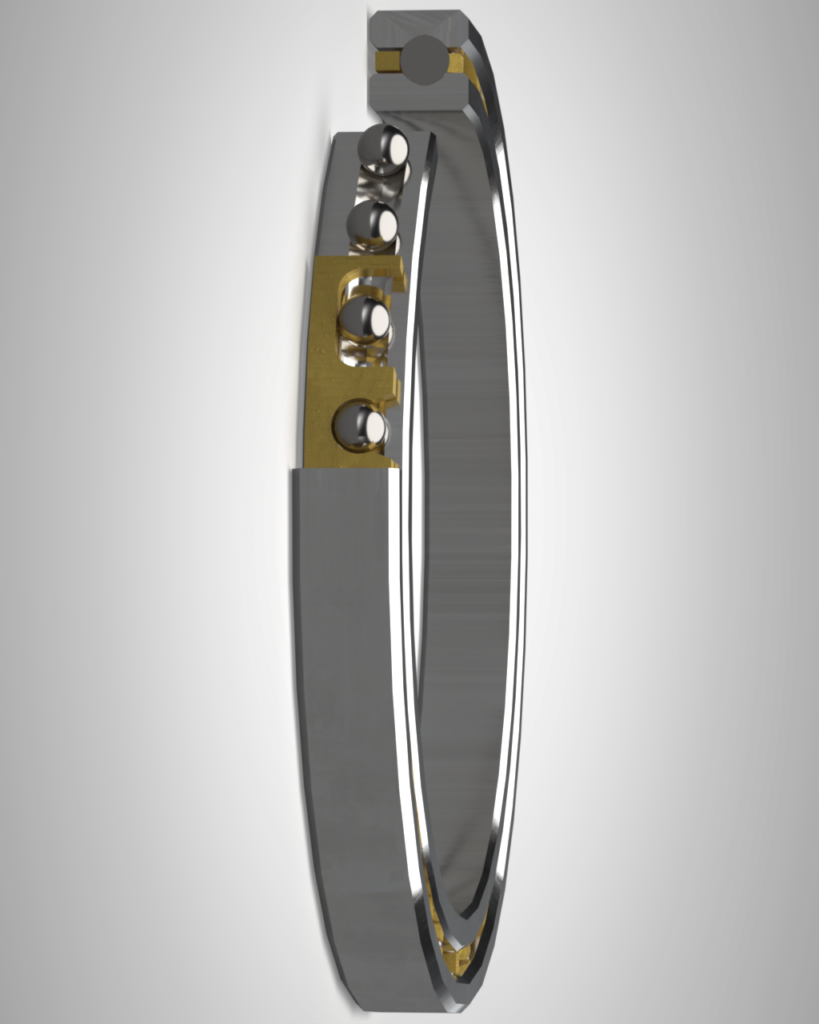

wdt_ID Part Number Bore<br>(in.) Outside Diameter<br>(in.) Land Diameter<br>L1 (in.) Land Diameter<br>L2 (in.) Radial Capacity Dynamic<br>(lbs) Thrust Capacity Dynamic<br>(lbs) Moment Capacity Dynamic<br>(lbs/In)
5
STD040X
4.0000
5.0000
4.370
4.630
1320
3,325
2,890
6
STD042X
4.2500
5.2500
4.620
4.880
1380
3,450
3,210
7
STD045X
4.5000
5.5000
4.870
5.130
1430
3,575
3,590
8
STD047X
4.7500
5.7500
5.120
5.380
1455
3,637
3,790
9
STD050X
5.0000
6.0000
5.370
5.630
1515
3,787
4,160
10
STD055X
5.5000
6.5000
5.870
6.130
1610
4,025
4,890
11
STD060X
6.0000
7.0000
6.370
6.630
1700
4,250
5,490
12
STD065X
6.5000
7.5000
6.870
7.130
1800
4,500
6,280
13
STD070X
7.0000
8.0000
7.370
7.630
1860
4,650
6,980
14
STD075X
7.5000
8.5000
7.870
8.130
1985
4,962
7,960
15
STD080X
8.0000
9.0000
8.370
8.630
2020
5,050
8,680
16
STD090X
9.0000
10.0000
9.370
9.630
2210
5,525
9,940
17
STD100X
10.0000
11.0000
10.370
10.630
2350
5,875
12,360
18
STD110X
11.0000
12.0000
11.370
11.630
2510
6,275
14,580
19
STD120X
12.0000
13.0000
12.370
12.630
2640
6,600
16,510
Part Number Bore<br>(in.) Outside Diameter<br>(in.) Land Diameter<br>L1 (in.) Land Diameter<br>L2 (in.) Radial Capacity Dynamic<br>(lbs) Thrust Capacity Dynamic<br>(lbs) Moment Capacity Dynamic<br>(lbs/In)
