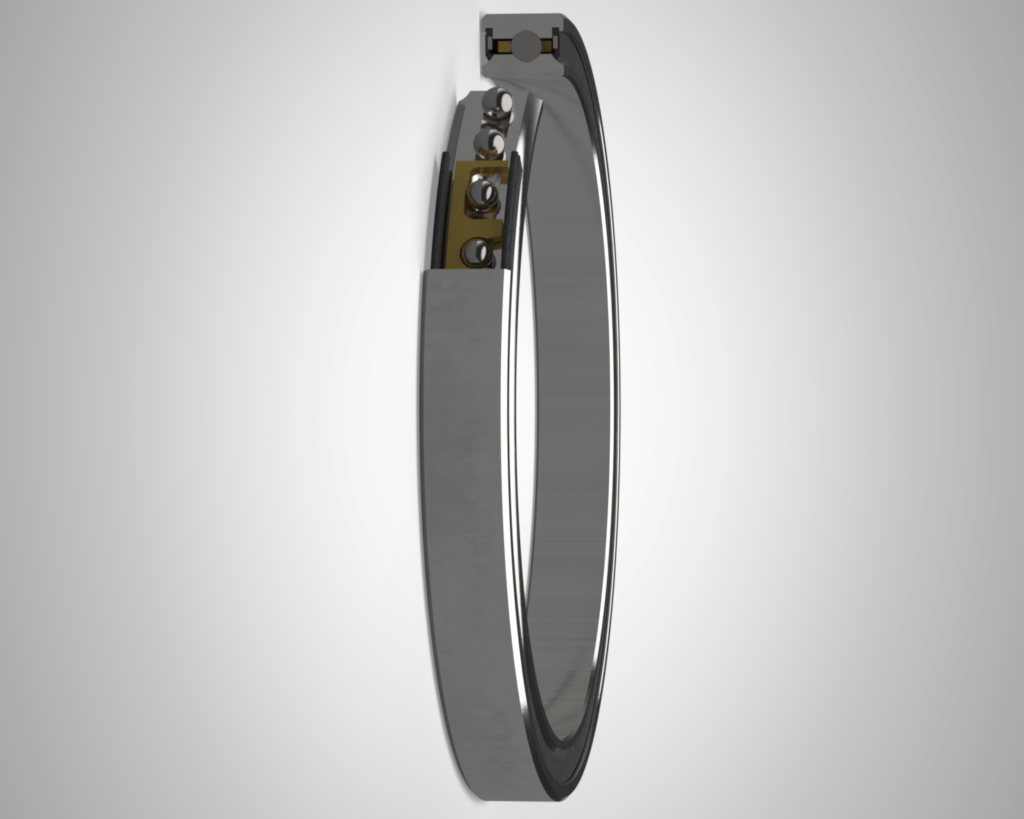

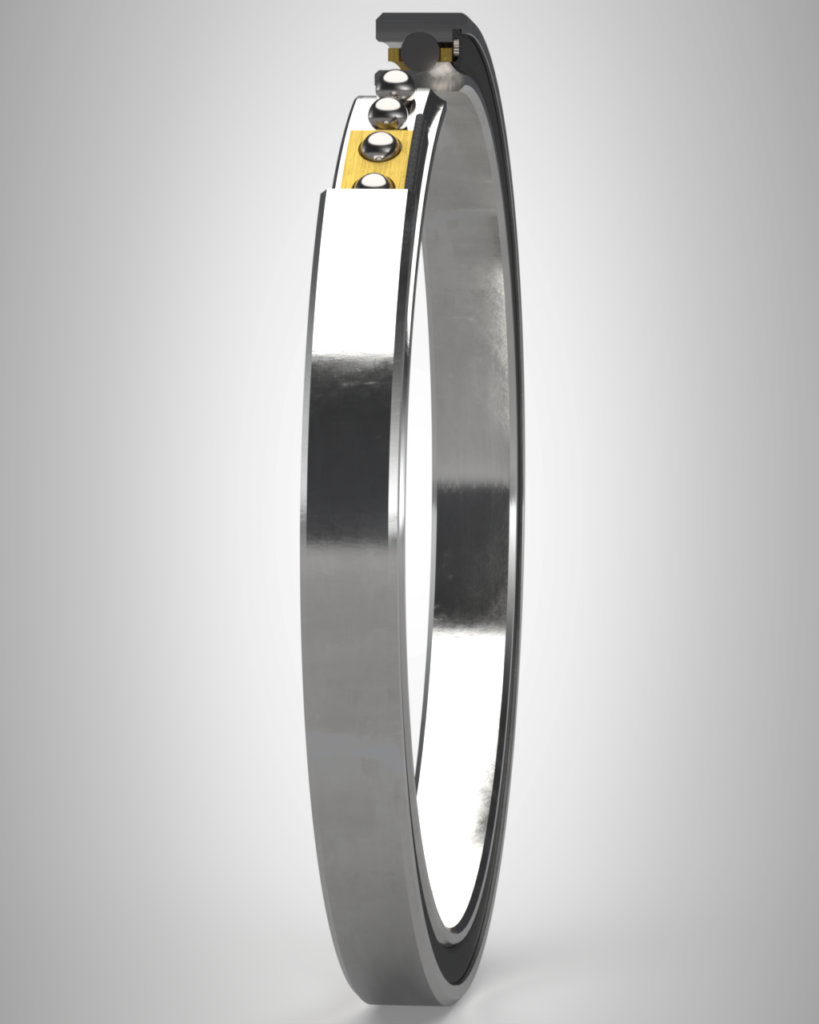

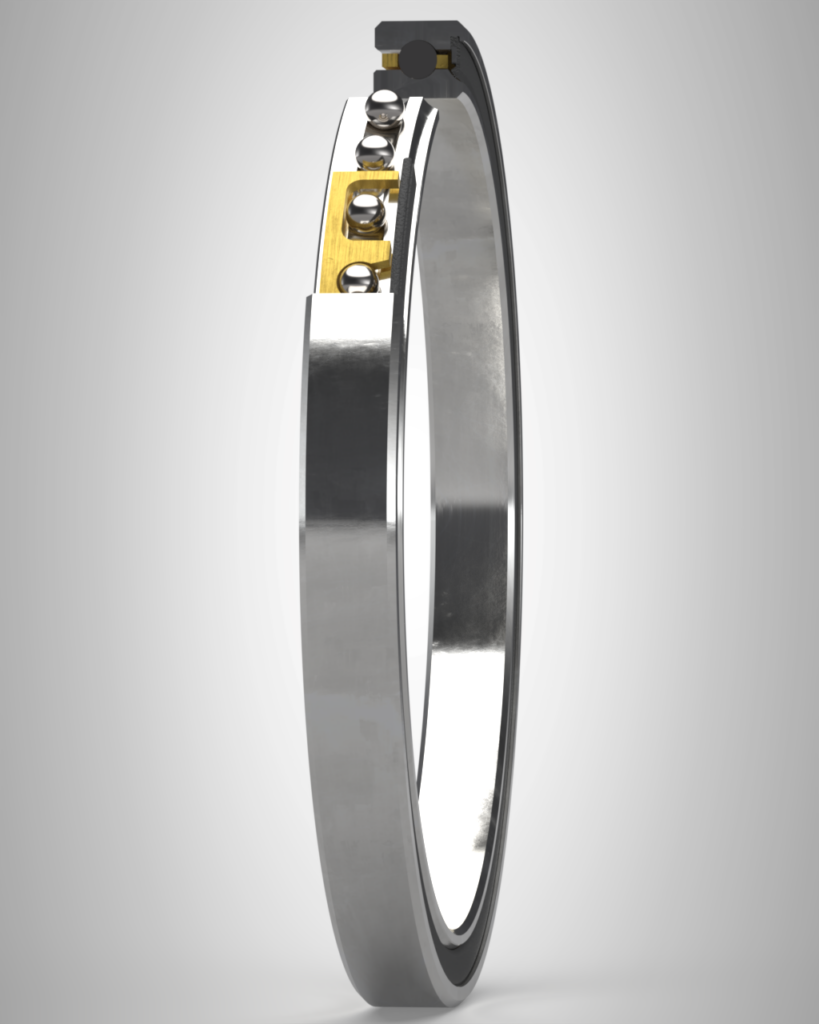

STJ and STU series bearings from Schatz are thin section bearings. STJ bearings are A and C types. STU bearings are X type.
There are two types of products: Angular Contact (A) and Radial (C).
| wdt_ID | Part Number | Bore<br>(in.) | Outside Diameter<br>(in.) | Land Diameter<br>L1 (in.) | Land Diameter<br>L2 (in.) | C Bore Diameter<br>L3 (in.) | Land Diameter<br>L4 (in.) | Radial Capacity Dynamic<br>(lbs) | Thrust Capacity Dynamic<br>(lbs) |
|---|---|---|---|---|---|---|---|---|---|
| 5 | STJ040A | 4.0000 | 4.7500 | 4.1500 | 4.5470 | 4.1980 | 4.4730 | 850 | 2100 |
| 6 | STJ042A | 4.2500 | 5.0000 | 4.4000 | 4.7970 | 4.4480 | 4.7230 | 890 | 2210 |
| 7 | STJ045A | 4.5000 | 5.2500 | 4.6500 | 5.0470 | 4.7000 | 4.9730 | 910 | 2270 |
| 8 | STJ047A | 4.7500 | 5.5000 | 4.9000 | 5.2950 | 4.9500 | 5.2230 | 940 | 2330 |
| 9 | STJ050A | 5.0000 | 5.7500 | 5.1500 | 5.5450 | 5.2000 | 5.4730 | 980 | 2440 |
| 10 | STJ055A | 5.5000 | 6.2500 | 5.6500 | 6.0420 | 5.7000 | 5.9730 | 1030 | 2560 |
| 11 | STJ060A | 6.0000 | 6.7500 | 6.1500 | 6.5420 | 6.2020 | 6.4730 | 1080 | 2730 |
| 12 | STJ065A | 6.5000 | 7.2500 | 6.6500 | 7.0370 | 6.7020 | 6.9730 | 1130 | 2840 |
| 13 | STJ070A | 7.0000 | 7.7500 | 7.1500 | 7.5370 | 7.2020 | 7.4730 | 1210 | 3020 |
| 14 | STJ075A | 7.5000 | 8.2500 | 7.6500 | 8.0370 | 7.7040 | 7.9730 | 1240 | 3130 |
| 15 | STJ080A | 8.0000 | 8.7500 | 8.1500 | 8.5370 | 8.2040 | 8.4730 | 1300 | 3290 |
| 16 | STJ090A | 9.0000 | 9.7500 | 9.1500 | 9.5350 | 9.2060 | 9.4730 | 1420 | 3520 |
| 17 | STJ100A | 10.0000 | 10.7500 | 10.1500 | 10.5350 | 10.2080 | 10.4730 | 1470 | 3750 |
| 18 | STJ110A | 11.0000 | 11.7500 | 11.1500 | 11.5350 | 11.2100 | 11.4730 | 1590 | 4040 |
| 19 | STJ120A | 12.0000 | 12.7500 | 12.1500 | 12.5350 | 12.2120 | 12.4730 | 1700 | 4260 |
| Part Number | Bore<br>(in.) | Outside Diameter<br>(in.) | Land Diameter<br>L1 (in.) | Land Diameter<br>L2 (in.) | C Bore Diameter<br>L3 (in.) | Land Diameter<br>L4 (in.) | Radial Capacity Dynamic<br>(lbs) | Thrust Capacity Dynamic<br>(lbs) |
| wdt_ID | Part Number | Bore<br>(in.) | Outside Diameter<br>(in.) | Land Diameter<br>L1 (in.) | Land Diameter<br>L2 (in.) | Radial Capacity Dynamic<br>(lbs) |
|---|---|---|---|---|---|---|
| 5 | STJ040C | 4.0000 | 4.7500 | 4.1500 | 4.5470 | 850 |
| 6 | STJ042C | 4.2500 | 5.0000 | 4.4000 | 4.7970 | 890 |
| 7 | STJ045C | 4.5000 | 5.2500 | 4.6500 | 5.0470 | 910 |
| 8 | STJ047C | 4.7500 | 5.5000 | 4.9000 | 5.2950 | 940 |
| 9 | STJ050C | 5.0000 | 5.7500 | 5.1500 | 5.5450 | 980 |
| 10 | STJ055C | 5.5000 | 6.2500 | 5.6500 | 6.0420 | 1030 |
| 11 | STJ060C | 6.0000 | 6.7500 | 6.1500 | 6.5420 | 1080 |
| 12 | STJ065C | 6.5000 | 7.2500 | 6.6500 | 7.0370 | 1130 |
| 13 | STJ070C | 7.0000 | 7.7500 | 7.1500 | 7.5370 | 1210 |
| 14 | STJ075C | 7.5000 | 8.2500 | 7.6500 | 8.0370 | 1240 |
| 15 | STJ080C | 8.0000 | 8.7500 | 8.1500 | 8.5370 | 1300 |
| 16 | STJ090C | 9.0000 | 9.7500 | 9.1500 | 9.5350 | 1420 |
| 17 | STJ100C | 10.0000 | 10.7500 | 10.1500 | 10.5350 | 1470 |
| 18 | STJ110C | 11.0000 | 11.7500 | 11.1500 | 11.5350 | 1590 |
| 19 | STJ120C | 12.0000 | 12.7500 | 12.1500 | 12.5350 | 1700 |
| Part Number | Bore<br>(in.) | Outside Diameter<br>(in.) | Land Diameter<br>L1 (in.) | Land Diameter<br>L2 (in.) | Radial Capacity Dynamic<br>(lbs) |
Â
wdt_ID Part Number Bore<br>(in.) Outside Diameter<br>(in.) Land Diameter<br>L1 (in.) Land Diameter<br>L2 (in.) Radial Capacity Dynamic<br>(lbs) Thrust Capacity Dynamic<br>(lbs) Moment Capacity Dynamic<br>(lbs/In)
5
STU040X
4.0000
4.7500
4.1500
4.5470
850
2100
1870
6
STU042X
4.2500
5.0000
4.4000
4.7970
890
2210
2040
7
STU045X
4.5000
5.2500
4.6500
5.0470
910
2270
2210
8
STU047X
4.7500
5.5000
4.9000
5.2950
940
2330
2610
9
STU050X
5.0000
5.7500
5.1500
5.5450
980
2440
2610
10
STU055X
5.5000
6.2500
5.6500
6.0420
1030
2560
3040
11
STU060X
6.0000
6.7500
6.1500
6.5420
1080
2730
3480
12
STU065X
6.5000
7.2500
6.6500
7.0370
1130
2840
3910
13
STU070X
7.0000
7.7500
7.1500
7.5370
1210
3020
4400
14
STU075X
7.5000
8.2500
7.6500
8.0370
1240
3130
4930
15
STU080X
8.0000
8.7500
8.1500
8.5370
1300
3290
5480
16
STU090X
9.0000
9.7500
9.1500
9.5350
1420
3520
6670
17
STU100X
10.0000
10.7500
10.1500
10.5350
1470
3750
7670
18
STU110X
11.0000
11.7500
11.1500
11.5350
1590
4040
9050
19
STU120X
12.0000
12.7500
12.1500
12.5350
1700
4260
10560
Part Number Bore<br>(in.) Outside Diameter<br>(in.) Land Diameter<br>L1 (in.) Land Diameter<br>L2 (in.) Radial Capacity Dynamic<br>(lbs) Thrust Capacity Dynamic<br>(lbs) Moment Capacity Dynamic<br>(lbs/In)
