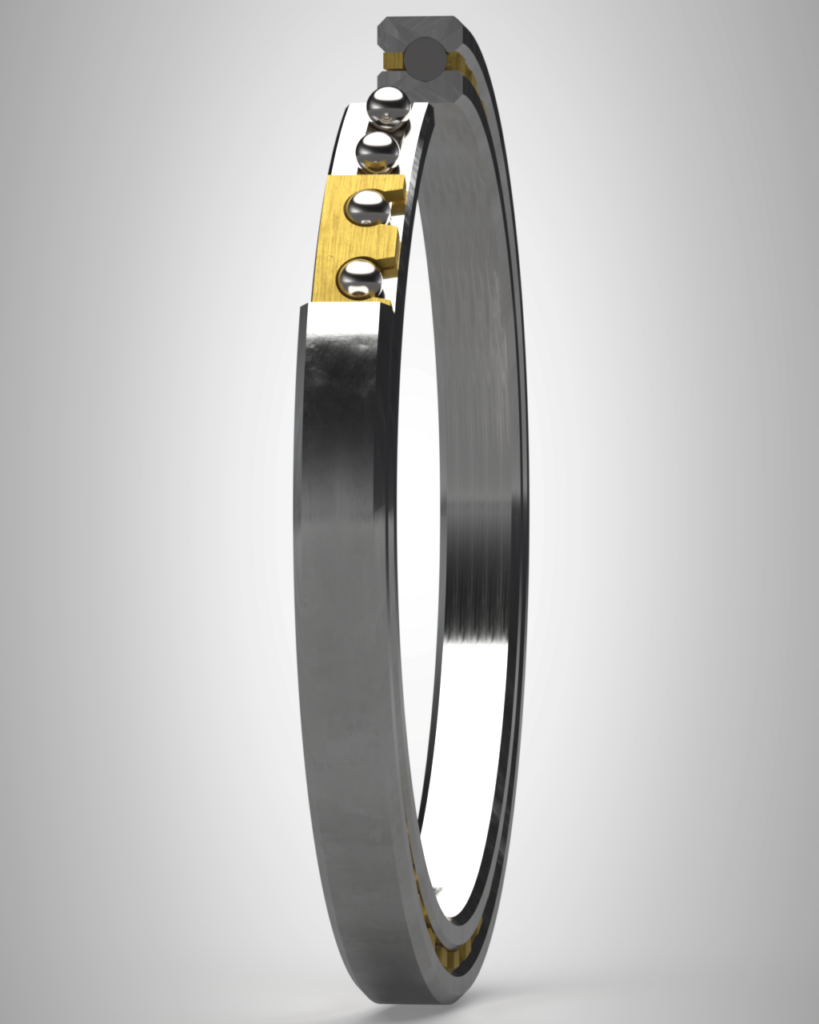

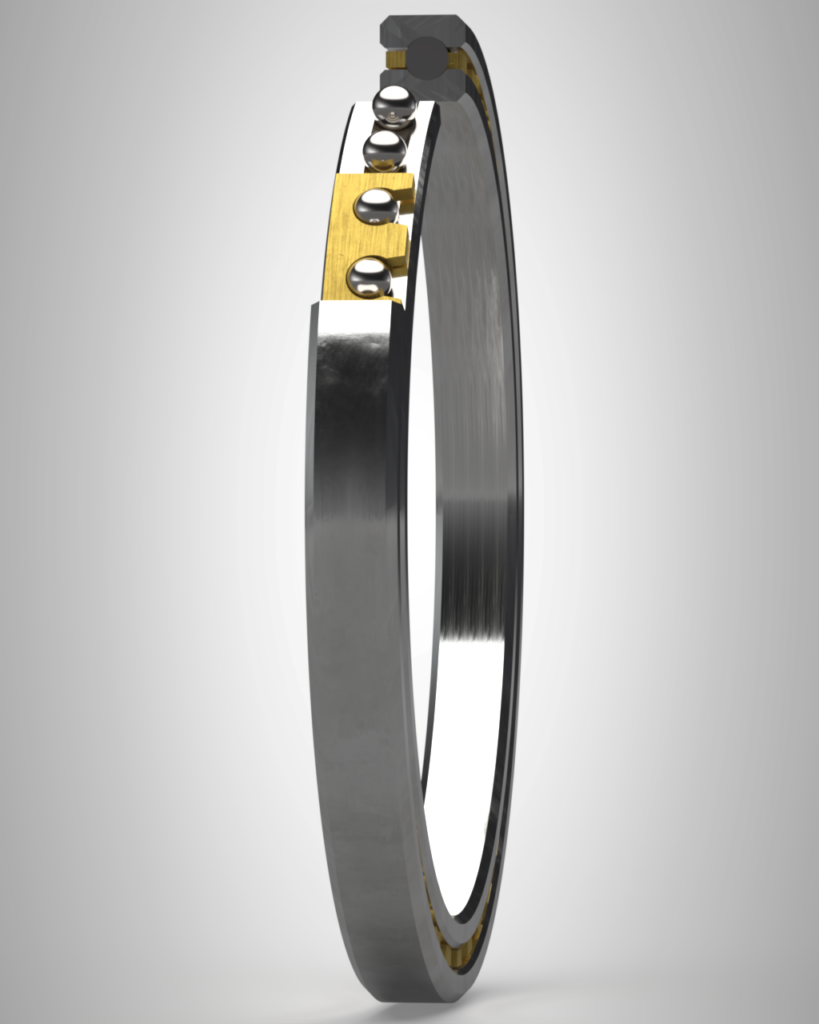

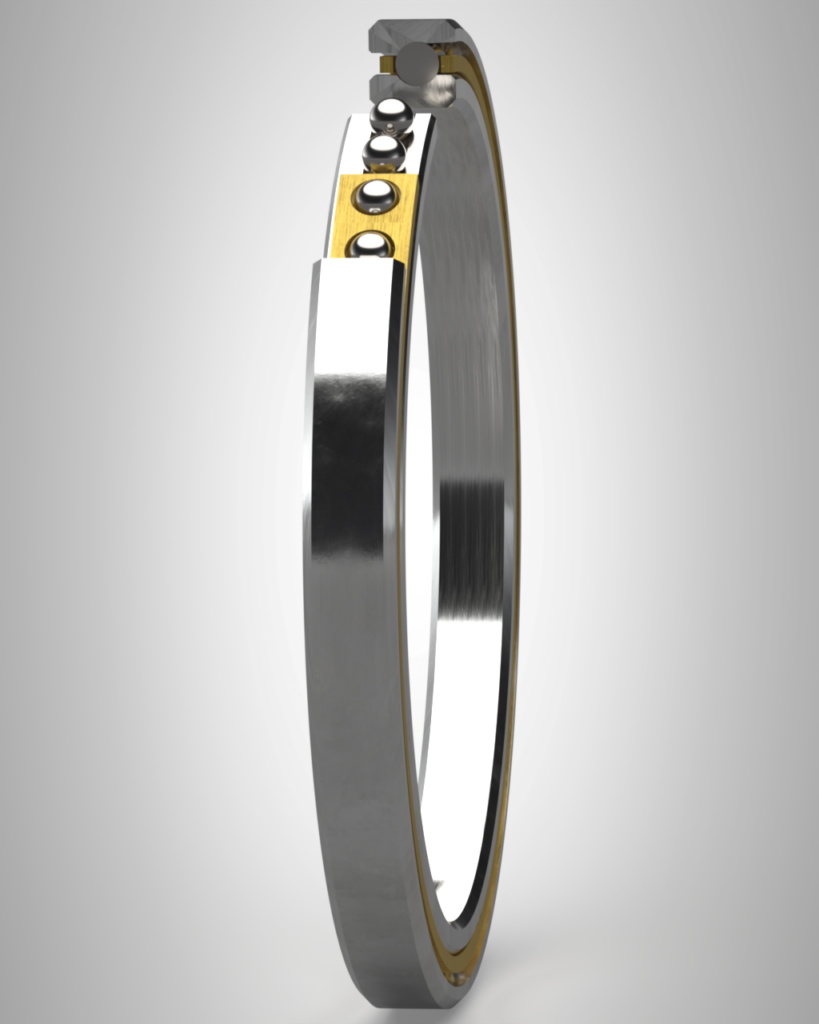

STAA series thin section bearings have ABEC 1F, 3F, 5F, or 7F tolerances. ABEC 1F and 3F bearings are suitable for less demanding applications, and ABEC 5F and 7F bearings are used in applications requiring higher speeds, lower torque, and greater positional accuracy. STAA series bearings are available as angular (A-type), radial (C-type), or four-point (X-Type) contact for bores up to 12”.
wdt_ID Part Number Bore D (in.) Outside<br>Diameter (in.) Width (in.) Corner Radius<br>(in.) Radial Static<br>Load (lbs) Radial Dynamic<br>Load (lbs) Thrust Static<br>Load (lbs) Thrust Dynamic<br>Load (lbs)
1
STAA015A
1.5
1.875
0.1875
0.015
480
380
1,380
1,100
3
STAA017A
1.75
2.125
0.1875
0.015
530
390
1,520
1,122
Part Number Bore D (in.) Outside<br>Diameter (in.) Width (in.) Corner Radius<br>(in.) Radial Static<br>Load (lbs) Radial Dynamic<br>Load (lbs) Thrust Static<br>Load (lbs) Thrust Dynamic<br>Load (lbs)
| wdt_ID | Part Number | Bore D (in.) | Outside<br>Diameter (in.) | Width (in.) | Corner Radius<br>(in.) | Radial Static<br>Load (lbs) | Radial Dynamic<br>Load (lbs) |
|---|---|---|---|---|---|---|---|
| 1 | STAA010C | 1 | 1.375 | 0.1875 | 0.015 | 290 | 300 |
| 2 | STAA015C | 1.5 | 1.875 | 0.1875 | 0.015 | 400 | 350 |
| 3 | STAA017C | 1.75 | 2.125 | 0.1875 | 0.015 | 460 | 371 |
| Part Number | Bore D (in.) | Outside<br>Diameter (in.) | Width (in.) | Corner Radius<br>(in.) | Radial Static<br>Load (lbs) | Radial Dynamic<br>Load (lbs) |
| wdt_ID | Part Number | Bore D (in.) | Outside<br>Diameter (in.) | Width (in.) | Corner Radius<br>(in.) | Radial Static<br>Load (lbs) | Radial Dynamic<br>Load (lbs) | Thrust Static<br>Load (lbs) | Thrust Dynamic<br>Load (lbs) |
|---|---|---|---|---|---|---|---|---|---|
| 1 | STAA010X | 1 | 1.375 | 0.1875 | 0.015 | 290 | 270 | 730 | 680 |
| 2 | STAA015X | 1.5 | 1.875 | 0.1875 | 0.015 | 400 | 310 | 1,000 | 770 |
| 3 | STAA017X | 1.75 | 2.125 | 0.1875 | 0.015 | 480 | 322 | 1,140 | 805 |
| Part Number | Bore D (in.) | Outside<br>Diameter (in.) | Width (in.) | Corner Radius<br>(in.) | Radial Static<br>Load (lbs) | Radial Dynamic<br>Load (lbs) | Thrust Static<br>Load (lbs) | Thrust Dynamic<br>Load (lbs) |
