THIN SECTION Bearings

Man programming robotics automation

Bearings for Difficult to Reach and Tight Spaces

Schatz supplies radial, angular contact, and four point contact designs. Thin section bearings can be used in the following applications:
  • Aerospace and defense
  • Automation and robotics
  • Semiconductor manufacturing equipment
  • Medical equipment
  • Machine tools
  • Rotary and indexing tables
  • Optical equipment
  • Radar, satellite, spacecraft, and general space exploration
We supply eight different series of products. The precision bearings within each series are available in A, C, and X Types.

PRODUCT PARTS AND SPECIFICATIONS

STA Series

  • 0.025” x 45° OD Chamfer
  • 0.250” Cross-Section
  • 2” to 12” Bore
View Parts

STB Series

  • 0.040” x 45° OD Chamfer
  • 0.3125” Cross-Section
  • 2” to 12” Bore
View Parts

STC Series

  • 0.040” x 45° OD Chamfer
  • 0.375” Cross-Section
  • 4” to 12” Bore
View Parts

STD Series

  • 0.060” x 45° OD Chamfer
  • 0.500” Cross-Section
  • 4” to 12” Bore
View Parts

STF Series

  • 0.080” x 45° OD Chamfer
  • 0.750” Cross-Section
  • 4” to 12 Bore
View Parts

STG Series

  • 0.080” x 45° OD Chamfer
  • 1.000” Cross-Section
  • 4” to 12” Bore
View Parts

STJ Series

  • 0.015” x 45° OD Chamfer
  • 0.437” Cross-Section
  • 4” to 12 Bore
View Parts

STU Series

  • 0.015” x 45° OD Chamfer
  • 0.500” Cross-Section
  • 4” to 12” Bore
View Parts
ThinSectionGroup 1024x927 1 768x695 1

Features

  • ABEC 1F, 3F, 5F, or 7F tolerances
  • Bearing bores up to 12”

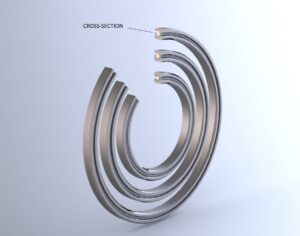

  • Cross sections: 3/16”, 1/4”, 5/16”, 3/8”, 1/2”, 5/8”, 3/4”, and 1”
  • Duplexed pairs: back-to-back, face-to-face, tandem
  • Materials: 52100 high carbon steel, 440C stainless steel
  • Coatings: black oxide, TDC, zinc nickel-plated, cadmium plated
  • Sealed versions incorporate Buna-N molded seals
  • Strict preload control, variety of lubricants and cage designs

RESOURCES

Technical Information

ABEC precision tables and options for materials, closure, retainers/separators, and lubrication.

Bearing Life Calculations

Capacity and fatigue life of ball bearings plus life adjustment factors.
